Micro Air Dryer For An Air Compressor Systems 290W 280L/Min

Brand Name : Willing-Cool

Model Number : YD-1

Certification : CO

Place of Origin : Xiamen, China

MOQ : 10pcs per item

Price : FOB Xiamen, US Dollar.

Payment Terms : T/T, L/C, Western Union, MoneyGram

Supply Ability : 3,000pcs/ month

Delivery Time : 20 days after receiving formal purchasing order & advance payment

Packaging Details : carton as customer

Power : 240W

Inlet Flow : 150L/min

Working Pressure : ≤0.8MPa

Support : 1 Year warranty

Power Voltage : 220V/110V

Inlet air temperature : 35℃

Inlet / Outlet connector : G1/2

Overall Dimensions : 210*162*200mm

Contact Now

  1. Compressed Air Refrigerated Dryer Filter for Hyperbaric Oxygen Chamber
Product Description
Model No. YD-1S YD-1 YD-2 YD-3
Inlet flow
L/min@0.8MPa*		 150L/min 150L/min 280L/min 420L/min
Power 240W 240W 290W 390W
Working Pressure ≤0.8MPa ≤0.8MPa ≤0.8MPa ≤0.8MPa
Voltage 220V/110V 220V/110V 220V/110V 220V/110V
Inlet Temperature 35℃ 35℃ 35℃ 35℃
Filter Accuracy 50um 50um 50um 50um
Inlet / Outlet connector G1/2 G1/2 G1/2 G1/2
Overall Dimensions 210*162*200mm 230*161*285mm 230*161*285mm 230*167*345mm
Wight 6kg 7kg 7.5kg 9.5kg

YD Series Air Dryers are the wonderful substitute for air filter in pneumatic system. If a filter in the system is difficult to ensure the reliable operation of the system, take YD Series Air Dryer into account.
For small compress air system, less than 400L/min air flow rate, big air dryer and not suitable and economic. And for most of small pneumatic devices, they need low cost and just enough dry air.
YD series miniature dryer meet these requirements. Different from the main line dryer that usually mounted after the air compressor, YD series miniature air dryers are designed for the pneumatic equipment of terminal of air line.
Compact and lightweight design, requires less space.Even smaller than a shoes box.
They have two methods to drain CONDENSATE.
1.solenoid valve, controlled by Electronic Timer that built in the dryer. The time of discharge condensate is fixed in 5 seconds. Interval of discharge is adjustable from 1 to 10 minutes.
2.Float drain Without noise and pressure fluctuation while discharge. This is a pneumatic air filter with built in float drain.
Details Images

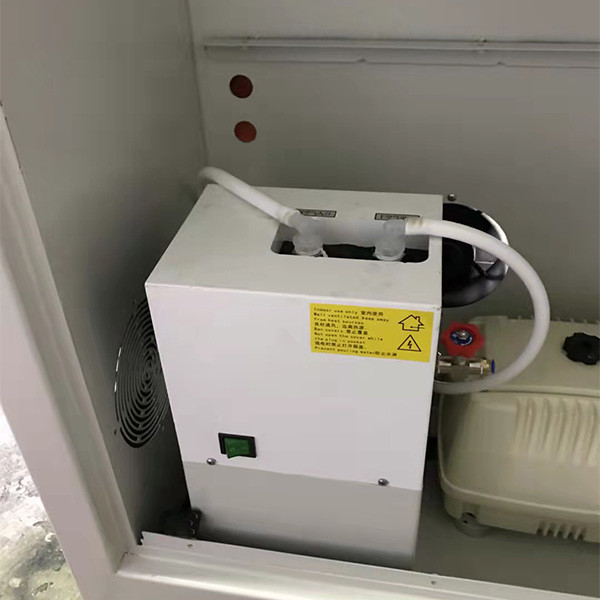

Micro Air Dryer For An Air Compressor Systems 290W 280L/Min
Micro Air Dryer For An Air Compressor Systems 290W 280L/Min
Company Profile
Xiamen Willing-cool Machinery Co., Ltd.
We are manufacturer of dryer for pneumatic use or compressed air.
We specialist in R&D and production of miniature air compressed air dryer for several years.
We have a lot of users in industries such as industry, medical care, environmental protection, laboratory testing, etc.
